Water Repellent Agent vs Waterproofing Agent

Introduction

Water protection is essential in construction materials, but water repellent agents and waterproofing agents are often confused. Using the wrong solution may result in poor durability, unnecessary costs, or formulation problems. We’ll explain their differences and help you select the right solution for different applications.

What Is Water Repellent?

Water repellent(WR) is a chemical agent that can resist water to some extent. It cannot block all water penetration, but can improve surface hydrophobicity.

Water repellent agents are commonly used in concrete and cement-based materials to reduce capillary water absorption. In waterproof mortar formulations, water repellents are powder additives with good dispersibility and dust-free properties. In coating applications, liquid forms of water repellent agents are preferred.

What Is Waterproof?

Waterproof equals resistance to moisture, and it often refers to the property of a material or a system. Different from water repellent treatment, waterproofing can form a stronger barrier against water penetration.

Due to its continuous anti-moisture property, waterproof agents are more commonly used in applications where preventing leakage is primary. Both powder and liquid forms of waterproofer are used in construction and coating areas.

Water Repellent Agent vs Waterproofing Agent: Key Differences

From the above definitions, you can find some basic distinctions in their waterproofing performance. However, you should have a comprehensive understanding of their complete differences to make the right selection.

Waterproofing Principles

Water repellent agents resist water just like the lotus leaf effect, extending the water droplet contact angle to over 90°. It only alters surface tension but does not seal pores. The water droplets will not be penetrated but roll off naturally.

Waterproofing agents can form a dense coating (hundreds μm–mm thickness) to block moisture penetration. Or they will generate internal crystals to clog capillary channels. Combining physical and chemical actions, the waterproof agent can create an impermeable barrier.

Waterproofing Ratings

Water repellent agents are good for moistureproofing but generally cannot withstand high hydrostatic pressure. Depending on the substrate and formulation, water absorption can be reduced by 30–80% compared with untreated materials.

Waterproofing agents provide stronger resistance to water penetration. Properly formulated waterproofing systems can achieve hydrostatic pressure resistance values above 1000 mmH₂O based on standardized testing methods. They are much more suitable for continuous moisture or water pressure applications.

Application Scenarios

Water repellent agents are suitable for surface moisture protection on exterior walls, road and bridge structures. As well as on stonework and porous materials, water repellent agents can retain breathability and prevent efflorescence.

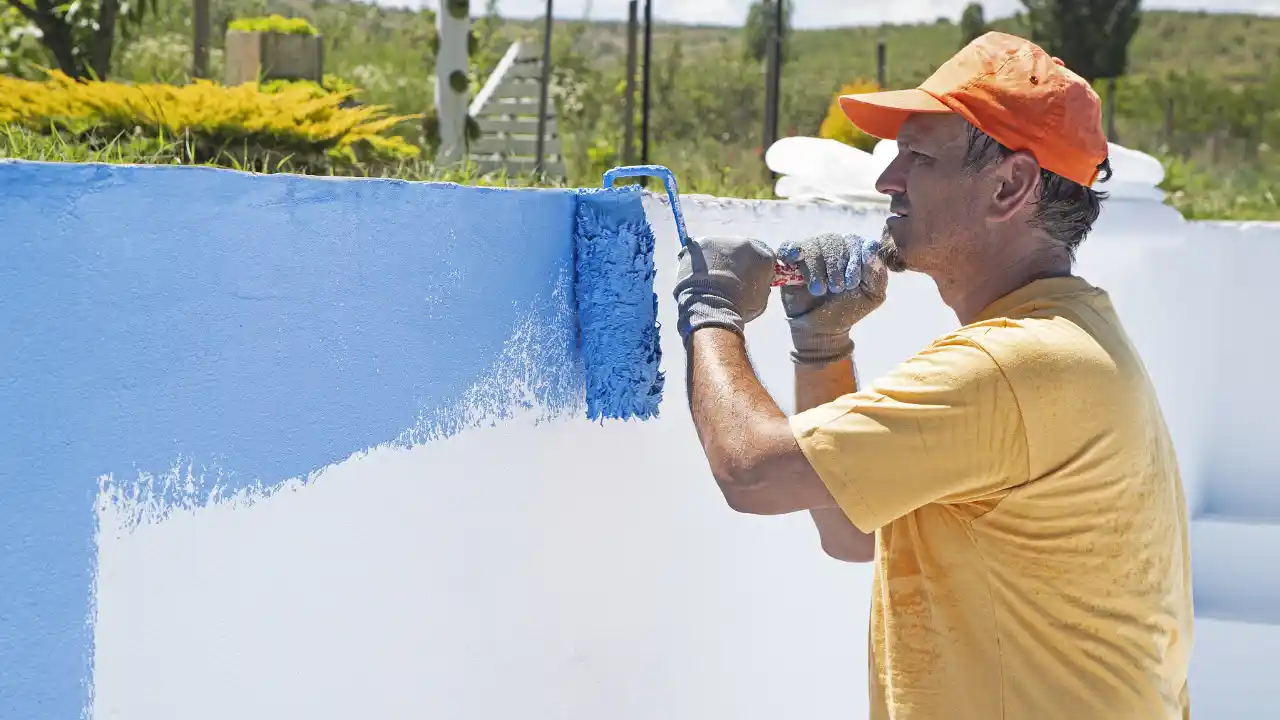

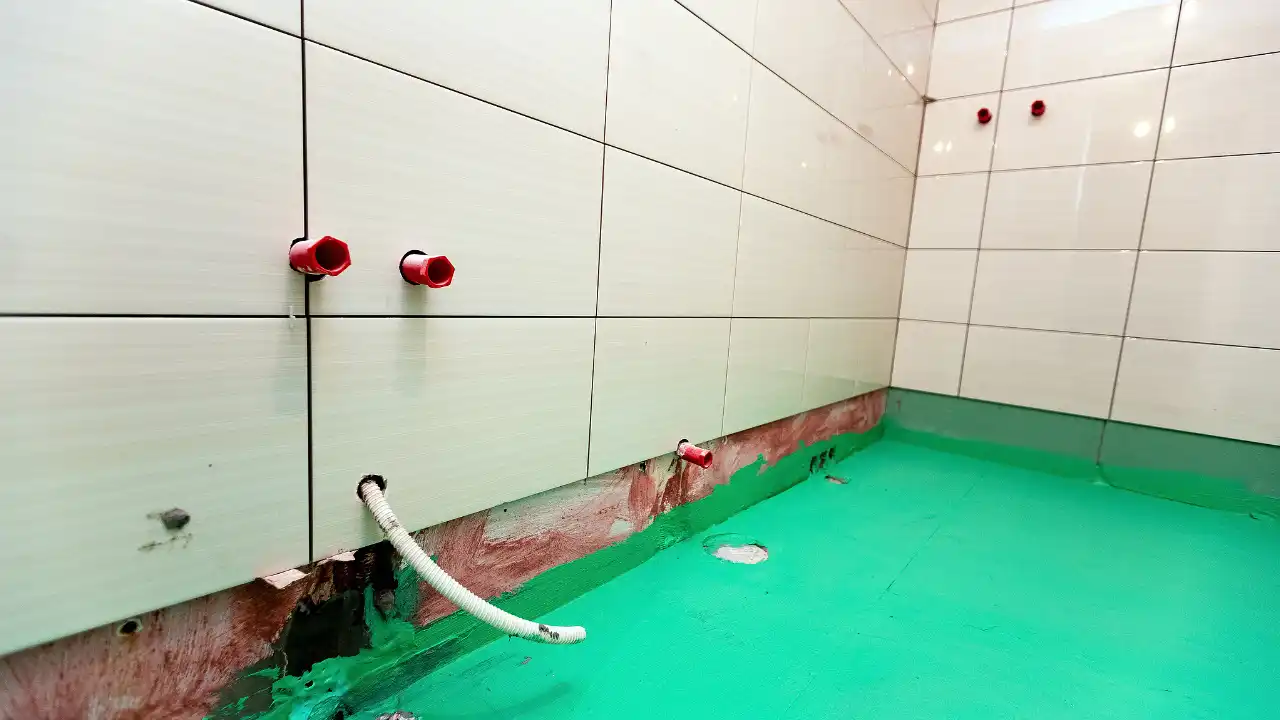

Waterproofing agents are designed for environments subject to prolonged water immersion or high water pressure. Mainly used in basements, bathrooms, swimming pools, and water reservoirs, they can create structural waterproofing barriers.

Durability

The hydrophobic surface film of water repellent is easily affected by UV radiation, acids, alkalis, and physical abrasion. The water-repellent performance will diminish over time. In harsh outdoor environments, you need periodic re-application to maintain the effect.

For waterproofers, the waterproofing layer generally forms a strong chemical bond with the substrate. They have stable physicochemical properties and excellent aging and weathering resistance. Certain penetrating crystalline waterproof agents possess self-healing capabilities if damaged.

Breathability

Water Repellent Agents do not seal the microscopic pores within the material. They enable water vapor to pass through freely when working. This unidirectional breathability can avoid moisture accumulation inside the walls.

Most of the waterproofing agents act as a completely sealed barrier with a minimal water vapor transmission rate. Although some of the penetrating waterproofers retain a slight degree of breathability, their overall breathability performance is far behind.

Application Process

The application of water repellent agent is simple. They have no high requirements on the substrate and environment. You do not need complex equipment, just simple spraying or brushing. Water repellent agents are suitable for rapid, large-scale application.

The requirements for waterproof agents are much higher. You must mix under precise ratios and apply several coats. To ensure waterproofing performance, they have stringent requirements on substrate flatness, dryness, and the treatment of critical junctions.

Cost

Typical dosage of water repellent agent ranges from 0.1% to 1.0%. Besides a small addition, the construction period is short, and the maintenance is also easier. With relatively low costs on material and labor, water repellent agents suit budget-limited or mild moisture protective projects.

Waterproofing agents require a higher dosage and vary in different applications. The overall cost is much higher than water repellent agents due to more complicated formulation, thicker coating layers and rigorous construction standards. But with longer service life, you can get long-term economic benefits.

Comparison Table

For your quick reference, we summarize the key differences between water-repellent and waterproofing agents in the table below:

How to Choose Between Water Repellent Agent vs Waterproofing Agent?

Based on the above comparison, we believe you have formed an initial idea on how to choose these two agents. To help you make an informed selection, you can refer to the following guidance.

Choose Water Repellent Agents If:

• You want to reduce water absorption
• The material is exposed mainly to rain or humidity
• Breathability is important

Choose Waterproofing Agents If:

• Water leakage prevention is required
• The system faces continuous water exposure
• Water pressure exists

All in all, to choose a water repellent agent or a waterproofing agent, you can evaluate based on:

• The level of water exposure
• Substrate condition
• Performance requirements

Can Water Repellent Agents & Waterproofing Agents Be Used Together?

By comparing their differences, we can see that water repellents and waterproofing agents are not interchangeable. However, in practical high-end applications, they are used together to form “composite waterproofing systems.

The combination of a concrete water repellent and a waterproofing agent is currently most common in large-scale underground and water conservancy projects. The waterproofing agent is usually added into concrete to improve internal density and block capillary pores. After the concrete pouring is completed and cured, a concrete water repellent will be applied on the surface to retain breathability.

By combining internal waterproofing and surface water repellency, concrete structures can achieve better water and weather resistance. This approach is commonly used in basements, tunnels, bridges, and other structures exposed to long-term moisture or harsh environments.

Common Mistakes When Choosing Water Protection Additives

Choosing Based Only on Water Resistance

Water resistance is important, but focusing solely on it will lead to premature system failure. You should also evaluate:

• Influence on adhesion: e.g., a highly water-repellent surface may cause tile adhesive or exterior render to peel off
• Long-term durability to UV radiation, alkaline environments
• Compatibility with cellulose ethers, RDP, and defoamers
• Cost efficiency: evaluate the overall lifecycle cost rather than just the unit price

Using Higher Dosage Without Testing

Higher dosage does not always provide better performance. Exceeding the optimum dosage can actually degrade the material. You should test and ensure the formulation is balanced.

Final Thoughts

Water repellent agents and waterproofing agents have differences in waterproof performance. You need to choose them based on protection goals and project requirements.

Celotech Silicone Water Repellent Agent Aquago® combines advanced silicone technology with formulation expertise and can provide customized solutions for different dry-mix mortar applications. Contact us for more information.

FAQs

Can Water Repellent Agents Prevent Concrete Cracking?

No. Water repellent agents cannot repair or prevent concrete cracking. They are useful for water protection.

What Is the Difference Between Surface Waterproofing and Integral Waterproofing?

Surface waterproofing agents are used on the outside with an anti-water protective layer. But integral waterproofing resists water from the internal structure of concrete.

How to Test The Performance of a Water Repellent Agent?

You can make 24h water absorption tests, measure the contact angle and evaluate the surface penetration level.

Do Water Repellent Agents Change the Appearance of Concrete?

Most high-quality water repellents will not influence the concrete appearance. Some products may slightly affect color or gloss.

What Is the Difference Between Silicone and Silane Water Repellent Agents?

Silicone water repellent is a broad category and includes any water repellent containing silicone ingredients. Silane water repellent is a specific sub-category, and it belongs to silicone water repellent.

Are Silane Water Repellents the Same as Siloxane Water Repellents?

Not exactly. Silane water repellents have extremely small molecules and focus on deep water penetration. While siloxane water repellents feature larger molecules, focusing primarily on surface and shallow-to-medium depth protection. In real applications, they are blended for improved effects.
