Introduction to HPMC
Hydroxypropyl Methylcellulose (HPMC), also known as hypromellose, is a non-ionic, water-soluble cellulose ether derived from natural high-polymer cellulose through a series of chemical modifications. It appears as an odorless, tasteless, white to off-white powder. HPMC is widely used across multiple industries including construction, pharmaceuticals, food, and personal care, due to its unique functional properties such as thickening, water retention, film forming, binding, emulsification, and stabilization.
Applications of HPMC
1. Construction Industry
HPMC is an essential additive in dry mix mortars, including tile adhesives, plasters, wall putty, and gypsum-based materials.
- Water Retention: Enhances water retention, reducing quick drying and improving cement hydration.
- Improved Workability: Acts as a lubricant and thickener to ensure better workability and spreadability.
- Sag Resistance & Adhesion: Enhances slip resistance and adhesion in vertical applications.
- Dosage Efficiency: Typically used at low dosages, it effectively modifies rheology without affecting mix composition.
HPMC is designed to meet demanding performance requirements, offering extended open time, enhanced cohesion, and improved mechanical strength.
2. PVC Industry
In PVC suspension polymerization, HPMC serves as a protective colloid and dispersing agent:
- Promotes uniform particle size distribution.
- Improves plasticizer absorption and processing behavior.
- Enhances thermal stability and resin morphology.
3. Pharmaceutical, Food & Personal Care
- Pharma: Used as a film former, binder, and release agent in tablets and capsules. Meets stringent pharmaceutical-grade standards with low ash content.
- Food: Functions as a thickener, emulsifier, and stabilizer. Approved for use in various food applications.
- Personal Care: Used in creams, lotions, shampoos, and gels as a viscosity modifier and stabilizer.
4. Industrial and Other Applications
The applications of HPMC extend beyond construction to various industries, including PVC polymerization, high-performance glues, and industrial protective coatings. Celotech focuses exclusively on high-purity Industrial Grade HPMC where superior performance, quality control, and batch consistency are the primary demands.
5. HPMC Differentiation in Mortar Systems
HPMC often requires different modifications depending on the binder used in the dry mix:
- Cement-Based Mortars: Standard HPMC works well, but it must be highly pure and stable to resist the strongly alkaline environment of hydrated cement.
- Gypsum-Based Mortars (Plasters, Fillers): Gypsum systems require HPMC with slightly different degrees of substitution to ensure optimal water demand and to prevent excessively slow setting times.
6.The Role of Thixotropy (Shear Thinning)
The performance of HPMC on site is defined by its ability to provide Thixotropy, or shear-thinning behavior.
- At Rest: HPMC forms a stable internal structure, providing high yield stress to prevent tile slip and material sag (static state).
- Under Shear: When the mason applies trowel force (shear), the structure instantly breaks down, allowing for smooth, easy application (dynamic state). This reversible property is essential for improving trowel resistance without compromising stability.
Key Properties of HPMC
1. Solubility & Gelation
- Soluble in water and some polar organic solvents.
- Forms transparent colloidal solutions in cold water.
- Exhibits reversible thermal gelation: precipitates upon heating, redissolves when cooled.
2. pH & Enzyme Stability
- Stable across a wide pH range (3–11).
- High resistance to enzymatic degradation, making it ideal for long-term applications.
3. Film Formation
- Excellent film-forming capability.
- Grease-resistant, flexible, and transparent films.
4. Water Retention
In skim coat and putty, HPMC minimizes cracking and shrinkage by maintaining internal moisture:
- Prevents premature drying.
- Enhances bonding and finish quality.
5. Dispersing Properties
- Prevents agglomeration of polymer particles.
- Stabilizes PVC resin morphology and improves overall processing performance.
6. Thickening & Rheology Control
- Improves tensile and flexural strength of mortar.
- Enhances fluidity, lubricity, and ease of application.
7. Construction Performance

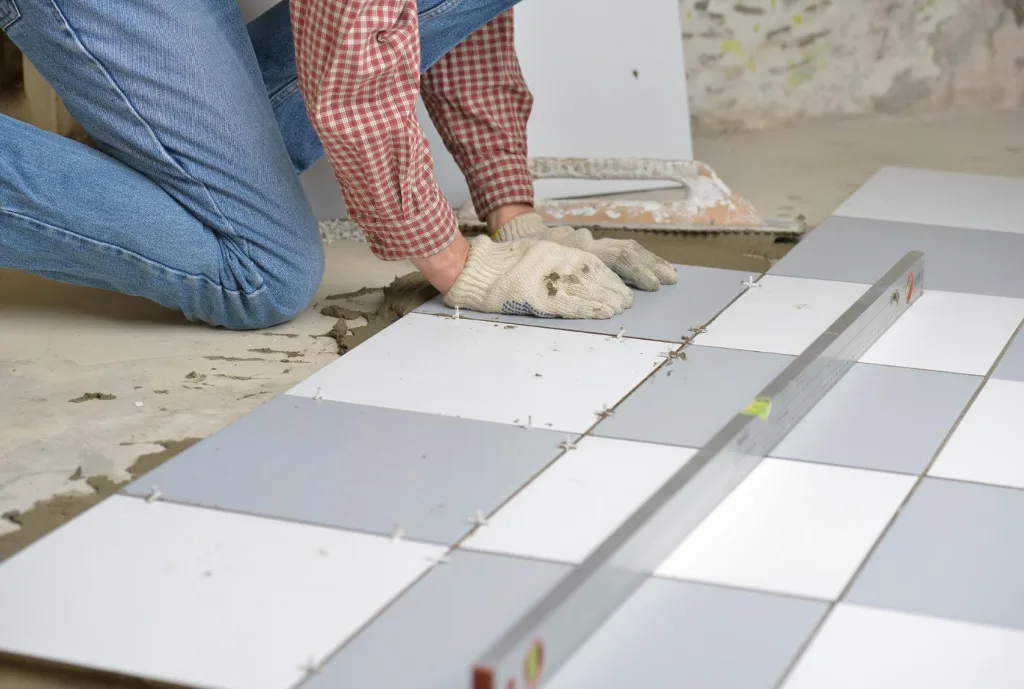

When formulating adhesives, especially tile adhesives, HPMC is crucial for:
- Increasing open time.
- Enhancing adhesion and cohesion.
- Preventing tile slip and sagging.
Selecting the best HPMC is critical to achieve optimal bonding strength and application performance. Celotech offers customized HPMC tailored for both standard and high quality tile adhesives.
Key Technical Depth
1. The Chemistry of HPMC Performance: MS vs.DS
In addition to standard viscosity measurement, the performance of HPMC is fundamentally determined by two chemical parameters controlled during manufacturing: the Degree of Substitution (DS) and the Molar Substitution (MS).
- DS (Degree of Substitution): This refers to the average number of hydroxyl groups replaced by a Methoxy group.1 A higher DS often correlates with enhanced thermal gelation temperature.
- MS (Molar Substitution): This refers to the average number of Hydroxypropyl groups attached per anhydroglucose unit. The MS value directly influences the hydrophilicity and thermal gelation point of the polymer. Higher MS generally means better water retention and a higher gelation temperature, which is critical for extending the open time of mortars in hot climates.
Celotech’s Advantage: As a manufacturer, we precisely control the MS/DS ratio to tailor the HPMC for specific properties, such as high anti-sagging or extended open time, directly optimizing the product for demanding mortar systems.
2. Viscosity and HPMC Grade Selection
HPMC is categorized by its viscosity (typically measured in mPa·s or cP) at a 2% solution at 2℃. Selecting the wrong viscosity is a major cause of mortar failure.
- High Viscosity Grades (≥40,000 mPas):Used in tile adhesives and thick-layer plasters where maximum sag resistance and anti-slip are required, ensuring heavy tiles do not slide on vertical surfaces.
- Medium Viscosity Grades (10,000-40,000 mPas):Ideal for wall putty (skim coats) and standard plasters, balancing good workability with sufficient water retention and bonding.
- Low Viscosity Grades (≤10,000 mPas):Preferred for self-leveling compounds and highly fluid grouts where high fluidity is essential, yet minimum water retention is still needed to prevent cement separation.
Why Choose Celotech as Your HPMC Manufacturer
Celotech Chemical Co., Ltd. is a specialized manufacturer of HPMC with a strong focus on cellulose ether research, production, and application. Our Celopro® series offers a wide range of HPMC grades specifically engineered for:
- Dry mix mortar
- Tile adhesives
- Skim coat and wall putty
- Self-leveling compounds
- Suspension polymerization of PVC
- Food and pharmaceutical formulations
With high quality control, strong technical support, and customization capabilities, Celotech is your reliable partner in sourcing the best HPMC.
Celotech‘s R&D and Manufacturing Scale
Our commitment to HPMC quality is backed by our extensive R&D capabilities and four modern production facilities. We maintain strict control over all critical manufacturing steps—from the selection of high-polymer cellulose raw materials to the final etherification and drying process—guaranteeing stable, high-performance Celopro® products batch after batch.
FAQ about Hydroxypropyl Methylcellulose (HPMC)
Q1: What is the function of HPMC in tile adhesive?
A: It improves water retention, open time, sag resistance, and bonding strength, making it ideal for wall and floor tiles.
Q2: Can HPMC be used in both hot and cold water?
A: Yes. HPMC dissolves in cold water and exhibits reversible gelation in hot water.
Q3: What’s the recommended dosage of HPMC in dry mix mortar?
A: Generally between 0.2% to 0.7% by weight, depending on formulation requirements.
