Engobes & Glazes

Engobes & Glazes Processing Challenges

Most glaze or engobe production lines, the issues are actually quite consistent as below:

First, slurry instability is probably the most common complaint. Without proper rheology control, glaze slips tend to sediment, flocculate, or separate during storage and application, leading to uneven coating and poor reproducibility.

Secondly, poor adhesion and coverage. If the binder system is weak, glaze layers may show pinholes, crawling, or even partial peeling after firing — especially in fast production lines.

Another issue we often see in practice is drying-related defects — cracking, shrinkage, or surface tension problems caused by uncontrolled water evaporation.

And finally, process inconsistency: grinding efficiency, viscosity drift, and application variability all affect final product quality and scrap rate.

glaze

Celotech Solution

So instead of fixing problems one by one, we usually approach engobes & glazes from a system perspective.

At Celotech, we mainly rely on a cellulose ether combination system:

CMC works as the “framework” — it stabilizes dispersion and prevents phase separation. HPMC then improves coating behavior and drying balance, especially under fast production conditions.

From experience, using only one additive rarely gives stable results. A combined system is much more forgiving in real production.

Celotech Recommended Formulation

To make it easier for lab trials and quick adjustments, here is a structured reference formulation:

Process Tips (based on real runs):

  • Pre-dissolve cellulose ether to avoid fish-eyes
  • Add CMC first → then HPMC for better dispersion
  • Control mixing shear — too high will break viscosity structure

This is not a “perfect formula”, but it’s a stable starting point for most glaze systems.

Component Function Notes
Ceramic powder / frit Base material Depends on application
Celopro® CS Series Suspension, rheology control Core additive, do not skip
Celopro®CX4 / Celopro®CX8 Water retention, adhesion Improves coating & drying
HEC / MHEC (optional) Fine viscosity adjustment Used for tuning only
Water Medium Depends on process

⚠ Disclaimer: This formulation is provided based on general ceramic processing principles and industry practices. Actual performance depends on:

  • Raw material composition
  • Equipment and mixing conditions
  • Application method
  • Firing process

Lab validation is strongly recommended before production use.

Celotech Formulations Advantages

glaze

What we’ve seen in actual customer lines is pretty consistent — once the system is balanced, things become much easier to control.

  1. Stable suspension, less rework: Celopro® CS provides strong dispersion stability, preventing sedimentation and delamination in glaze slurry.
  2. Better surface quality: Celopro®CX4 / Celopro®CX8 improves glaze coverage and smoothness — fewer pinholes, more uniform finish.
  3. Controlled drying behavior: Water retention helps reduce cracking and shrinkage during drying and early firing stages.
  4. Improved processing efficiency: Optimized viscosity improves grinding efficiency and application consistency.
  5. Stronger green body performance: Celopro® CS enhances plasticity and flexural strength before firing, reducing handling damage.

Applications

This solution is not limited to one product — it’s used across multiple ceramic segments:

  • Tile engobes (wall & floor tiles)
  • Decorative glazes
  • Sanitary ware coatings
  • Tableware ceramics
  • Special effect glazes
ceramic

Our Service

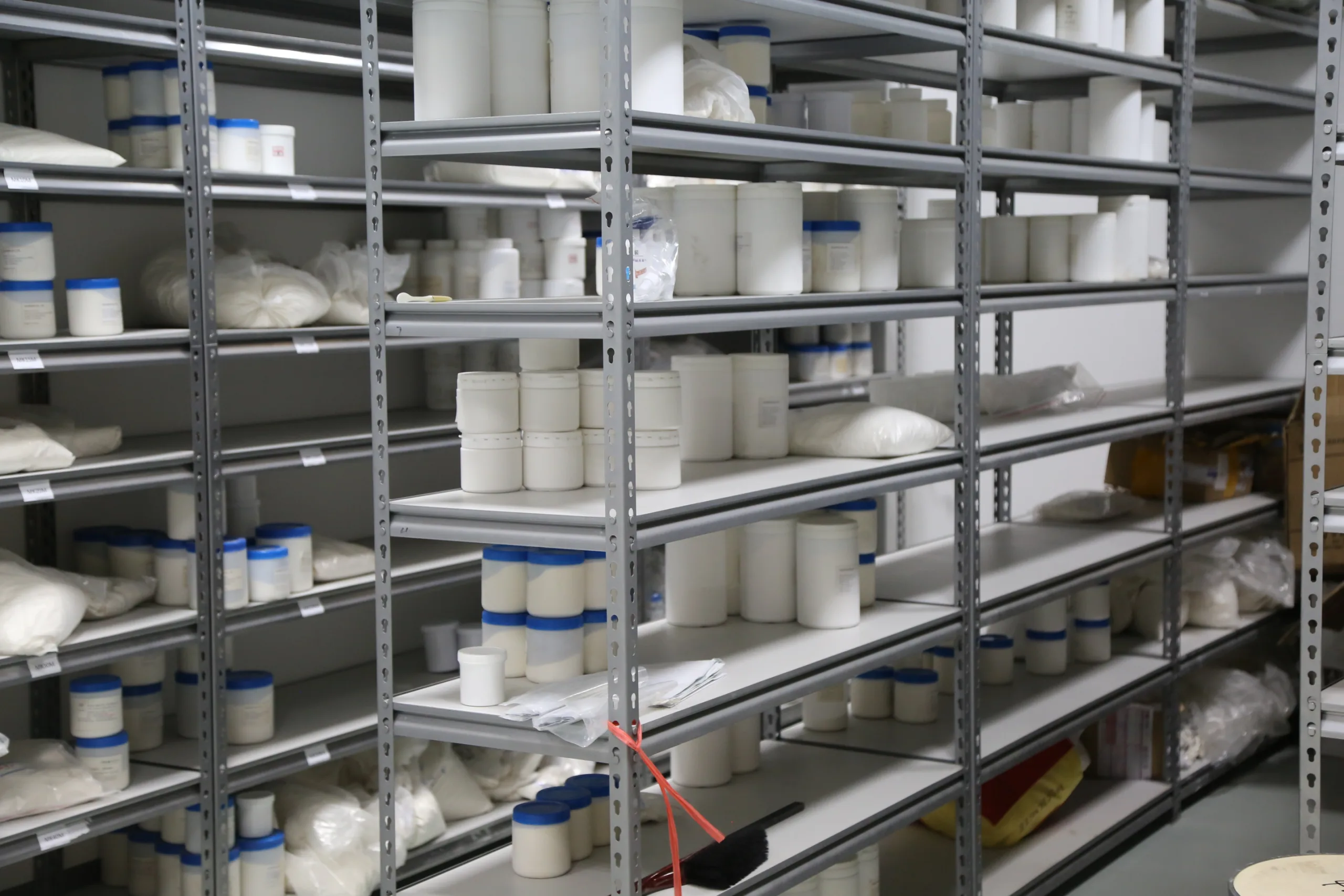

quality control

“Consistent Quality”

Maintaining high quality products and services has always been our top priority. Our customers & partners have strong trust in our products, so we work hard to meet their expectations – a continuous production process and daily quality assurance helps ensure the highest quality every time.



“Technical Service”

Nowadays, customers expect their mortar products that has good performance, excellent work-ability, with optimized properties like anti-sagging, anti-slip, good adhesion and lower cost. We have the experience, expertise, facilities and infrastructure to help them meet those challenges.At the same time, we will also provide value-added services to customers to help them improve the core competitiveness of their products.

Product customization

Celotech respect to customers specific requirements on the products according to their own circumstances. Combined with our experience working with a number of giant end users, we are able to develop special grades to match with each different customer’s different needs on products and consistently supply. From this kind of cooperation, customers can benefits from the outstanding properties which are given in the products with innovation either some achievements on the market competitiveness.



Related Posts

Ready to optimize your dry mix mortar formulations? Contact Celotech – your reliable HPMC manufacturer offering the best HPMC for tile adhesive and HPMC for dry mix mortar.
Sodium carboxymethyl cellulose (CMC) is a cellulose derivative, an ionic cellulose gum, and owing to its unique thickening, suspending, adhesion, and water retention properties, is widely used in various industrial fields.
Carboxymethyl cellulose is the third most industrially important cellulose derivatives after cellulose xanthate and cellulose acetate, and according to its purity percentage could be used in detergents, food industries, paper coating and laminating, emulsified dyes, drilling muds, pharmacy, cosmetics, health care, etc..

Frequently Asked Questions

As a binder and thickener, HPMC can improve the adhesion and coverage of glaze, making the glaze layer more uniform and smooth, thereby enhancing the aesthetics and durability of ceramic products.

Carboxymethyl cellulose (CMC) Hydroxypropyl Methylcellulose(HPMC) Hydroxy Ethyl Cellulose (HEC)
CMC has many good properties, such as adhesion, water retention, suspension, salt resistance, etc.
