Optimizing Hydration and Curing of Cement-Based Materials: Principles, Factors, and Best Practices
Cement hydration and proper cement curing process are fundamental to the strength, durability, and long-term performance of cement-based construction materials such as concrete, mortar, plaster, render, skim coat, tile adhesive, putty, and floor self-leveling compounds. In the construction additives industry, understanding the technical principles of hydration and curing—and applying them effectively—is critical for engineers, manufacturers, and applicators alike. This article explores the scientific mechanisms behind cement hydration, key influencing factors, best practices for cement curing, and solutions for various application conditions. We also highlight performance-enhancing additives such as cellulose ethers in cement, calcium formate for cement, redispersible polymer powder, and cement water retention additive solutions.
Why Is the 28-Day Mark Significant in Cement Curing?
The industry standard for cement curing time is 28-day cement strength. This timeline correlates with the hydration kinetics of Portland cement. By 28 days, the majority of hydration reactions are substantially complete, resulting in sufficient cement strength development for structural and performance requirements.

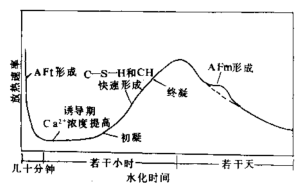

Differential Scanning Calorimetry (DSC) and X-Ray Diffraction (XRD) analyses show that cement hydration activity slows significantly after 28 days. The compressive and flexural strength tests at 28 days are universally accepted as benchmarks for quality and performance in cementitious systems.
Standard Strength Grades for Cement (Based on 28-Day Curing)
| Grade | Compressive Strength (MPa) | Flexural Strength (MPa) | ||
|---|---|---|---|---|
| 3d | 28d | 3d | 28d | |
| 32.5 | ≥12.0 | ≥32.5 | ≥3.0 | ≥5.5 |
| 42.5 | ≥17.0 | ≥42.5 | ≥4.0 | ≥6.5 |
| 52.5 | ≥22.0 | ≥52.5 | ≥4.5 | ≥7.0 |
| 62.5 | ≥27.0 | ≥62.5 | ≥5.0 | ≥8.0 |
Key Factors Affecting Cement Hydration and Strength Development
1. Cement Mineral Composition
Cement is primarily composed of four clinker minerals:
- C3S (Tricalcium silicate): Rapid hydration; contributes to early strength.
- C2S (Dicalcium silicate): Slower hydration; contributes to long-term strength.
- C3A (Tricalcium aluminate): Reacts quickly; generates heat.
- C4AF (Tetracalcium aluminoferrite): Moderate hydration rate; contributes to color and secondary strength.

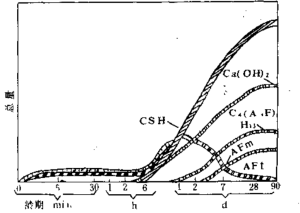

Hydration rates vary by mineral type. At 28 days:
- C3A and C4AF are nearly fully hydrated.
- C3S reaches ~70% hydration.
- C2S lags behind, with only ~17% hydration.
Understanding these differences is critical for optimizing early strength, workability, and durability in cementitious systems and cement-based product formulation.
2. Temperature
Hydration is exothermic and temperature-sensitive. Higher cement hydration temperature significantly accelerates the hydration rate, especially for C3S(Alite) and C2S, which dominate strength development. However, excessive heat can cause microcracking or shrinkage. Conversely, cold weather retards hydration, increasing the risk of frost damage before setting completes.
Recommendation: Use Quickset® S98 (a calcium formate-based accelerator) and cold weather concrete curing additives when working in low-temperature environments. Avoid applications below 5°C without proper protection.
3. Cement Fineness and Particle Size Distribution
Finer cement (higher specific surface area) hydrates faster due to increased surface contact with water. Most modern cements are ground to 300–400 m²/kg, which balances reactivity with workability. Excessively fine cement can cause rapid setting and reduce open time.
4. Water-Cement Ratio (w/c)
A higher water-cement ratio enhances ion mobility and allows greater degrees of hydration, especially in the early stages. However, excessive water increases porosity and reduces final strength. Optimal cement water retention additive content—especially in thin-layer applications like putty, skim coats, or tile adhesives—is essential to maintain hydration.
Solution: Incorporate Celopro® HPMC or MHEC cement additive to improve water retention and prevent premature evaporation. These HPMC in construction solutions help maintain consistent hydration in thin applications.
Best Practices for Cement-Based Product Curing
- Minimize early-age disturbance. Allow 24 hours before applying mechanical stress, depending on ambient temperature and mix design.
- Ensure adequate moisture availability. Spray water or use wet coverings to maintain a moist surface for 7 days.
- Use high-performance additives. Modify formulations with cellulose ethers, superplasticizers, and RDP powders to enhance open time, workability, and strength gain under varying conditions.
Product-Specific Curing Considerations
- Mortar & Plaster: Require balanced water retention and consistent curing to prevent shrinkage cracks.
- Skim Coats & Putty: Thin layers need high moisture retention; cellulose ethers are critical.
- Tile Adhesives: Extended open time and initial grab are important; use Vinabond® RDP and Celopro® additives.
- Self-Leveling Compounds: Rapid strength development and dimensional stability are key; use a blend of superplasticizers and accelerators.
Celotech’s Technical Solutions for Cement Additives
Celotech Chemical offers a comprehensive product portfolio for formulating high-performance cement-based building materials:
- Celopro® – Hydroxypropyl methylcellulose (HPMC) and MHEC cement additive for water retention and workability
- Celofiber® – Cellulose fibers to reduce shrinkage and improve crack resistance
- Vinabond® – Redispersible polymer powder for adhesion, flexibility, and strength
- Ultraplast® – Superplasticizers for water reduction and high fluidity
- Aquago® – Water repellents for enhanced durability
- Quickset® S98 – Calcium formate for cement; cement accelerator for cold weather and rapid applications
Conclusion: Maximizing Cement Performance Through Scientific Curing
Optimizing hydration and curing is essential for enhancing the strength, workability, and long-term durability of cement-based construction materials. By understanding the cement mineral composition, adjusting mix design for temperature and humidity, and using modern construction additives, manufacturers and applicators can improve performance across a wide range of applications.
Through its advanced product technologies and technical support, Celotech helps customers optimize curing efficiency, reduce construction risks, and develop cement-based product formulations that perform reliably under diverse environmental conditions. Whether you’re working with mortar, plaster, tile adhesives, or self-leveling systems, the right combination of curing practice and additive selection ensures product consistency, quality, and customer satisfaction.
