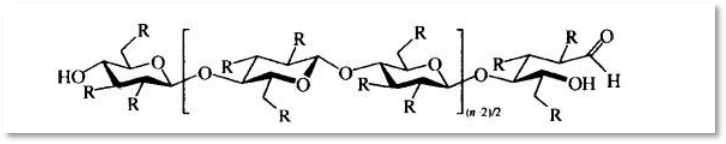

Sodium Carboxymethyl Cellulose, also named CMC, is a water-soluble polymer derived from natural cellulose (like wood pulp or cotton lint) through chemical modification. It belongs to a class of compounds called cellulose ethers. Physically, it is a white to off-white, odorless, and non-toxic powder that is biodegradable.
Thanks to its excellent properties like thickening, water retention, adhesion, and film-forming, CMC is an extremely versatile material used in a wide range of industries, including food, toothpaste, pharmaceuticals, oildrilling and ceramics. In industrial applications, it is highly valued for its efficiency and multifunctionality
CMC Grades for Oildrilling Use:
In oil and gas drilling operations, drilling fluid is hailed as the “blood of the well,” and its performance is critical. Not all CMC is the same—different grades are tailored to specific oilfield applications, primarily distinguished by viscosity and substitution degree (DS), which determines their functional performance. The main grades used in oil drilling are:
- Degree of Substitution (DS)– affecting solubility and reactivity
- Viscosity – lowand high viscosity grades for different application requirements
- Low Viscosity (LV-CMC):Ideal as a fluid loss reducer, with a viscosity of ≤90 mPa·s (600r/min in deionized water). It forms a dense filter cake to minimize fluid loss without significantly increasing drilling fluid viscosity, making it suitable for high-permeability formations and saltwater drilling fluids.
- High Viscosity (HV-CMC):Excellent thickening and suspending agent (viscosity ≥30 mPa·s in saturated saltwater), designed for deep wells, deviated wells, or formations with high cuttings production. It enhances the carrying capacity of drilling fluids to keep wellbores clean.
- Purity– technical grade for industrial use and purified grade for food and pharmaceutical applications
These grades ensure that CMC can be customized to meet the unique needs of different drilling scenarios, from shallow land wells to deep offshore wells and high-temperature/high-salinity formations.
Where is CMC Used in the Oildrilling?
- Drilling Fluid Additive (the most common use): As a thickener, fluid loss reducer, and suspending agent, CMC is a critical component of water-based drilling fluids (WBDFs), the most widely used drilling fluid type due to their cost-effectiveness and environmental compatibility.
- Cementing Operations: Added to cement slurries to improve workability, prevent fluid loss, and enhance the bond between cement and the wellbore wall, ensuring zonal isolation and well integrity.
- Completion & Workover Fluids: Used to maintain wellbore stability during completion and workover activities, preventing formation damage and ensuring smooth operations.
- Enhanced Oil Recovery (EOR):In some EOR techniques, CMC is used to increase the viscosity of injection fluids, improving oil displacement efficiency and boosting recovery rates.
Among these, drilling fluid applications account for the largest share of CMC usage in the oilfield, as it directly addresses two of the most critical challenges: maintaining wellbore stability and improving drilling efficiency.
How Does CMC Work in Oil Drilling?
As a key drilling fluid additive, CMC primarily serves two vital functions: enhancing viscosity and controlling fluid loss.
1. Enhancing Viscosity -Viscosifying Agent
When CMC powder is added to water and agitated, its molecular chains unwind and dissolve, creating a viscous solution. This thick fluid helps suspend and carry the rock cuttings generated during drilling to the surface.
- Effective Hole Cleaning: Ensures rock fragments cut by the drill bit are efficiently transported upward, preventing them from settling at the bottom and causing serious issues like a stuck drill pipe.
- Improved Cuttings Carryover: The viscous fluid better suspends weighting materials like barite, maintaining uniform fluid density for wellbore stability.
2. Controlling Fluid Loss- Filtration Control Agent
During drilling, the water phase of the fluid can seep into the permeable formations under pressure, a process called “fluid loss.” CMC molecules help form a thin, tough, and low-permeability filter cake on the wellbore wall. This cake acts like a protective membrane, significantly reducing water loss.
- Reservoir Protection: Minimizes contamination of the oil-bearing formation by drilling fluid filtrate, preserving productivity.
- Wellbore Stability: A good quality filter cake helps strengthen the wellbore wall, preventing collapse.
- Prevents Stuck Pipe: Maintains stable fluid properties, reducing the risk of the drill string getting stuck due to a thick mud cake or an unstable wellbore.
Why Choose CMC ? A Summary of Advantages
Beyond its core functions, choosing CMC for drilling fluids offers several notable advantages:
- Environmentally Friendly & Biodegradable: Sourced from natural plant fiber, it is eco-friendly, offering significant benefits in environmentally sensitive areas.
- Salt-Tolerant: It maintains good performance in certain saline water-based fluids.
- Cost-Effective: Compared to some synthetic polymers, CMC often provides reliable performance at a lower cost.
- Ease of Use: As a free-flowing powder, it is easy to transport, store, and mix on-site.
Celotech’s CMC series products(For Oil Drilling):
Celotech is committed to the research and production of cellulose ethers, with over 20 years of experience in the industry and years of production and sales experience.
Our CMC series products have different grades for different applications. For oil drilling, we have two recommended grades:
Celopro®CHV: High viscosity grade. It is mainly used as a thickener with high thickening efficiency and strong ability to suspend and carry drill cuttings. It is used in drilling fluid systems that require high viscosity to suspend drill cuttings and clean wellbores.
Celopro®CLV: Low viscosity grade. It is mainly used as a filtration control agent. It can effectively reduce filtration while having little effect on the overall rheological properties of the drilling fluid. It is used in all drilling fluid systems that require filtration control.
Conclusion
As the industry moves toward greener drilling practices, cellulose-based additives like CMC are gaining preference over synthetic polymers due to their biodegradability, renewable sourcing, and lower environmental footprint. CMC aligns perfectly with the industry’s ESG goals without compromising performance. it plays an indispensable role in ensuring the safe, efficient, and smooth progress of drilling operations.
